                            OS69 Summary


Features:

Drop in replacement for the
YJ69 Ignition Module

Applications:
Found on Wisconsin Models
TRA12D & S14D

Requirements:
YB83A stator must be
operational - See test below

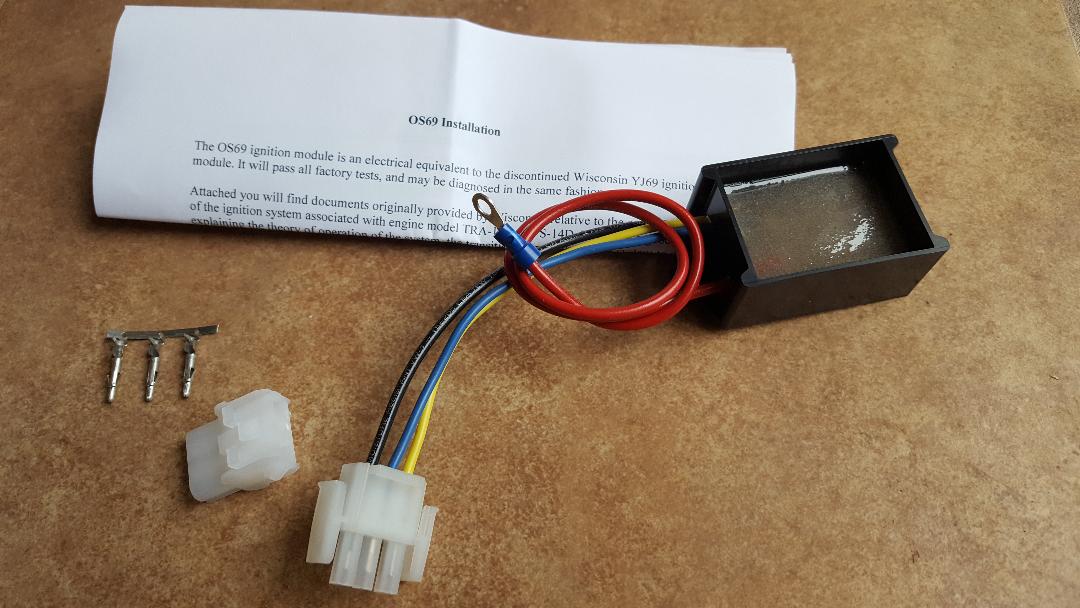

Components Included:
• Instructions & 24/7 Technical Support
• OS69 Ignition Module
• Mating Connector & Terminals

Installation Instructions PDF

The OS69 is the only true drop in replacement for the NLA YJ69 Ignition Module. This was my first product that I introduced to fill the NLA void in 2002, launching Overnight Solutions.

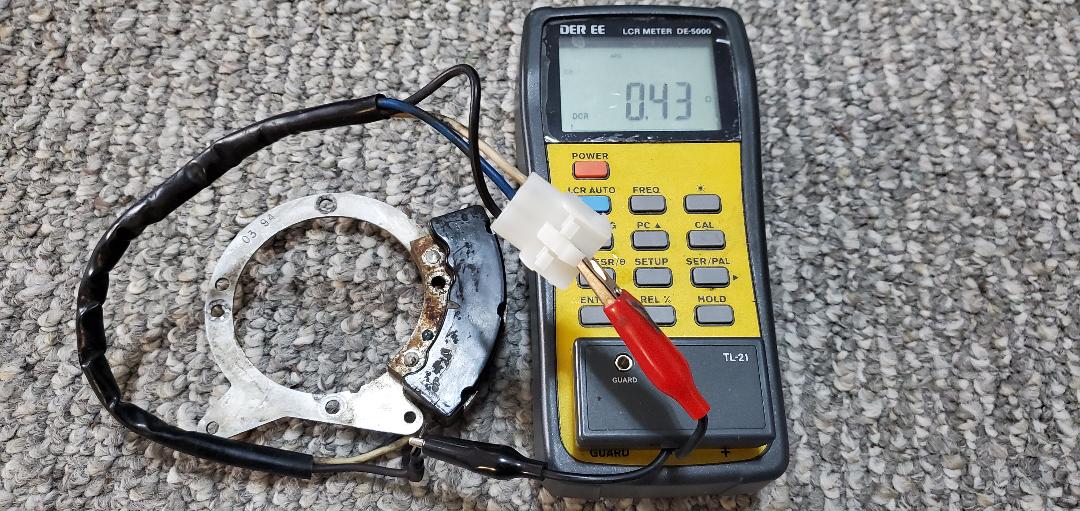

Wisconsin YJ69 Ignition Module YB83A Trigger Coil Resistance
Black to Yellow or White
(Roughly 1/2 Ohm of Resistance)

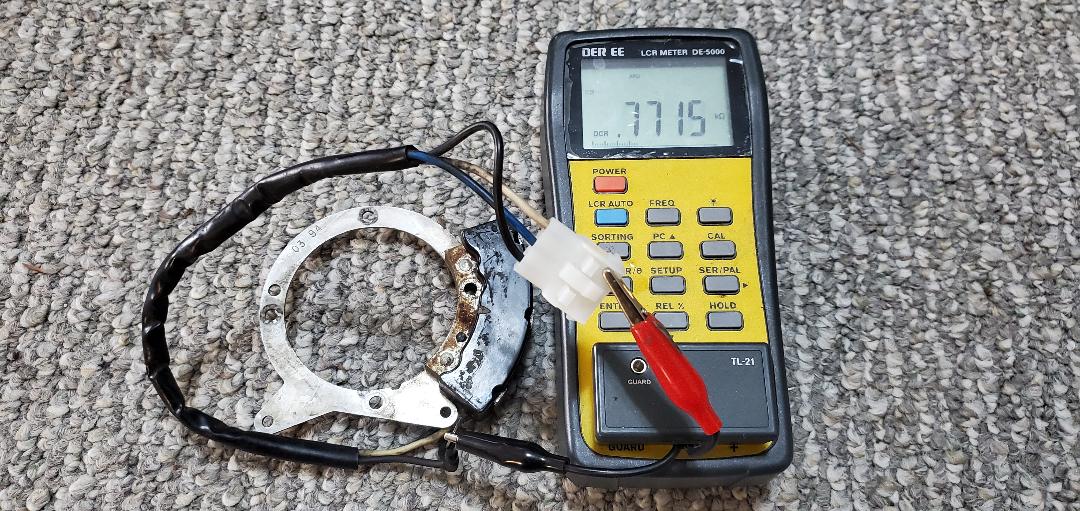

YB83A Charge Coil Resistance
Black to Yellow or White
(Roughly 750 Ohms of Resistance)
