                           TCDI II Summary

Features:

Drop in replacement for the
610748, 610855 & 610906

Applications:
Found on Tecumseh Models
HH100, HH120, OH120,
OH140, OH160 & OH180

Requirements:
Stator or Charge Coil must be good
See below for valid measurements

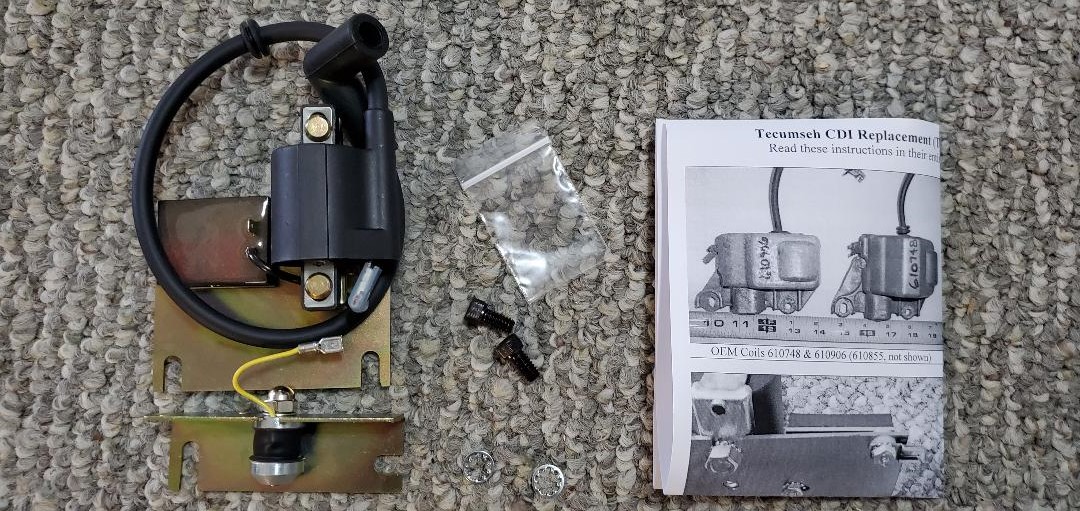

Components Included:
• Instructions & 24/7 Technical Support
• TCDI II inherently protected coil
• Socket Head Fasteners w/lock washers

Short Youtube Videos:
Eric's HH100 running
Mini-Dozer in operation

Case 1816 in operation
Timing Demonstration

Customer Applications

Installation Instructions PDF

The TCDI II is the only true drop in replacement for the NLA 610748, 610855 & 610906 OEM Coils. With over 4000 in the field, they are proven & reliable

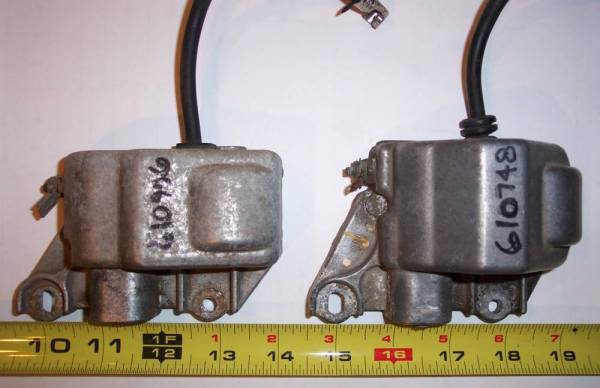

610906 & 610748 Coils 610902 20A Stator
NLA BUT I offer Solutions
GM or Chrysler

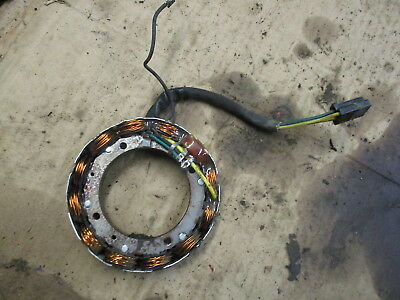

610747 10A Stator
NLA BUT I offer Solutions
GM or Chrysler

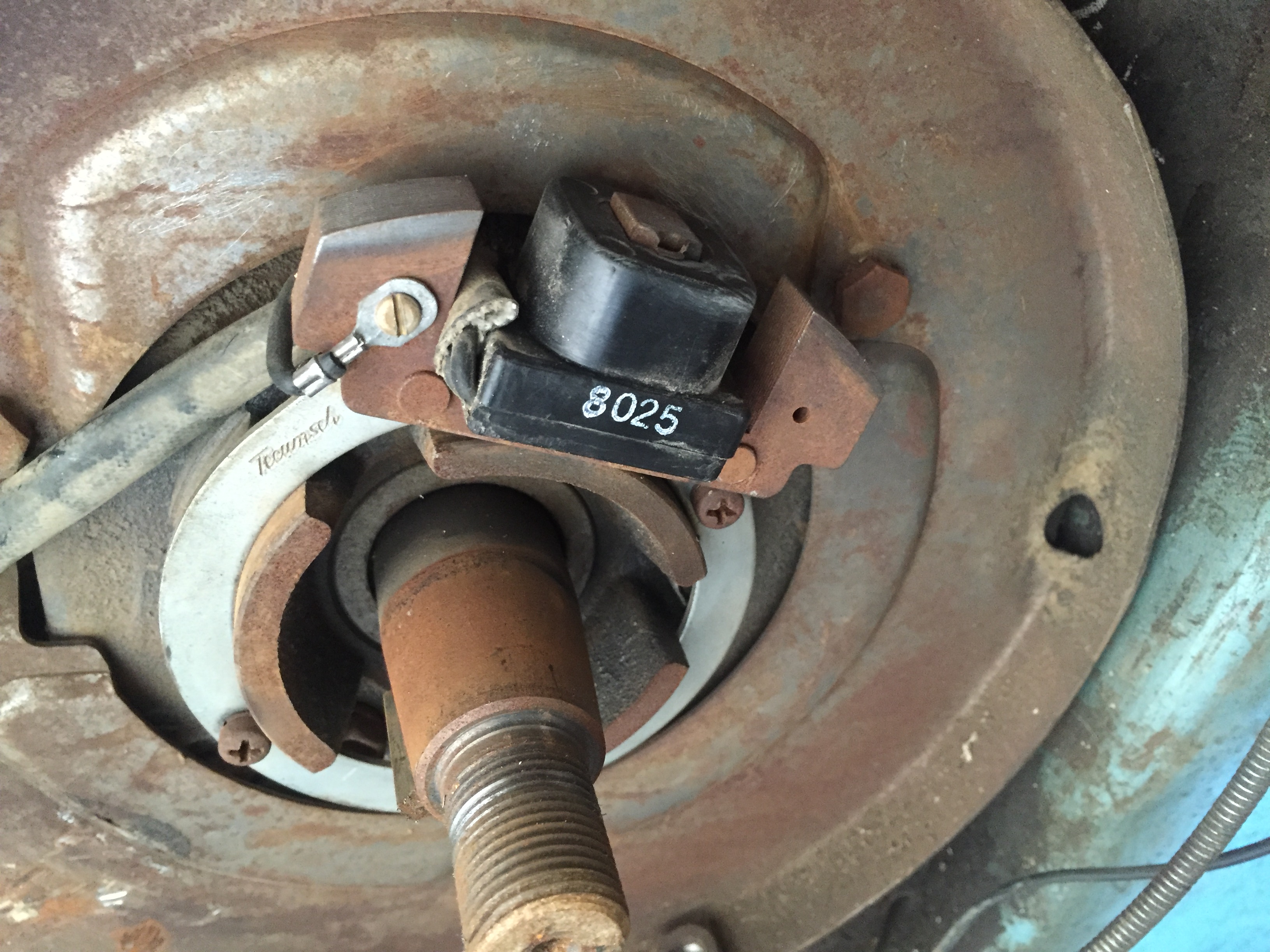

   610965 Charge Coil
NLA BUT I offer Solutions
GM or Chrysler
(610855 Similar but not shown)  (Should measure 130Ω or
160Ω nominal resistance)
(Should measure 470Ω
nominal resistance)
(Inductance test only)
